Jerome Palayoor

Carving the maze

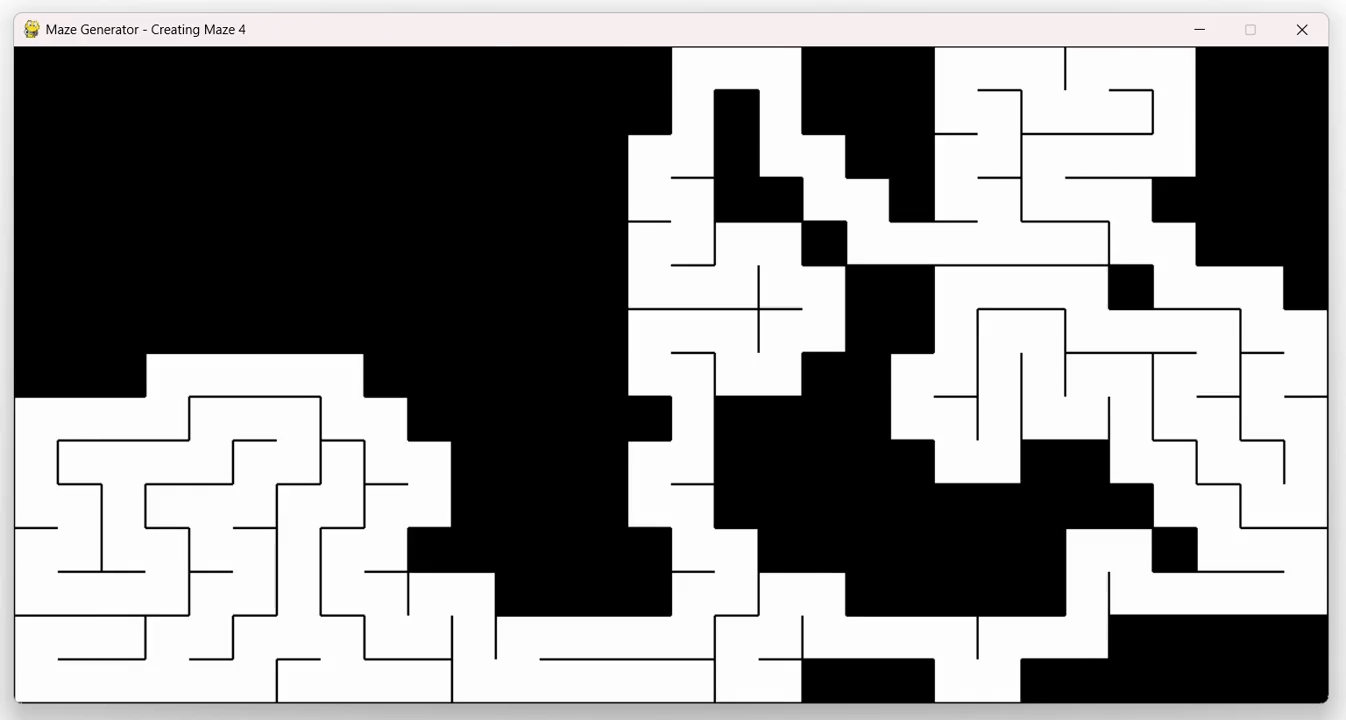

Every cell starts fully walled in on all 4 sides. Generation works by picking a random unvisited neighbor, knocking down the wall between it and the current cell, and moving there, backtracking through a stack whenever a cell has no unvisited neighbors left.

def visit(self,cells):
    self.visited = True
    neighbours = []
    if self.y != 0:
        if not cells[self.y-1][self.x].visited:
            neighbours.append(cells[self.y-1][self.x])
    if self.y != len(cells)-1:
        if not cells[self.y+1][self.x].visited:
            neighbours.append(cells[self.y+1][self.x])
    if self.x != 0:
        if not cells[self.y][self.x-1].visited:
            neighbours.append(cells[self.y][self.x-1])
    if self.x != len(cells[0])-1:
        if not cells[self.y][self.x+1].visited:
            neighbours.append(cells[self.y][self.x+1])

    if len(neighbours) > 0:
        cell = random.choice(neighbours)
        return cell.x, cell.y
    else:
        return None

Picking randomly among unvisited neighbors, and backtracking whenever there are none left, is what makes this "recursive backtracking" as a maze algorithm, it guarantees the result is a perfect maze, exactly one possible path between any two cells, no loops, nothing unreachable.

Solving it

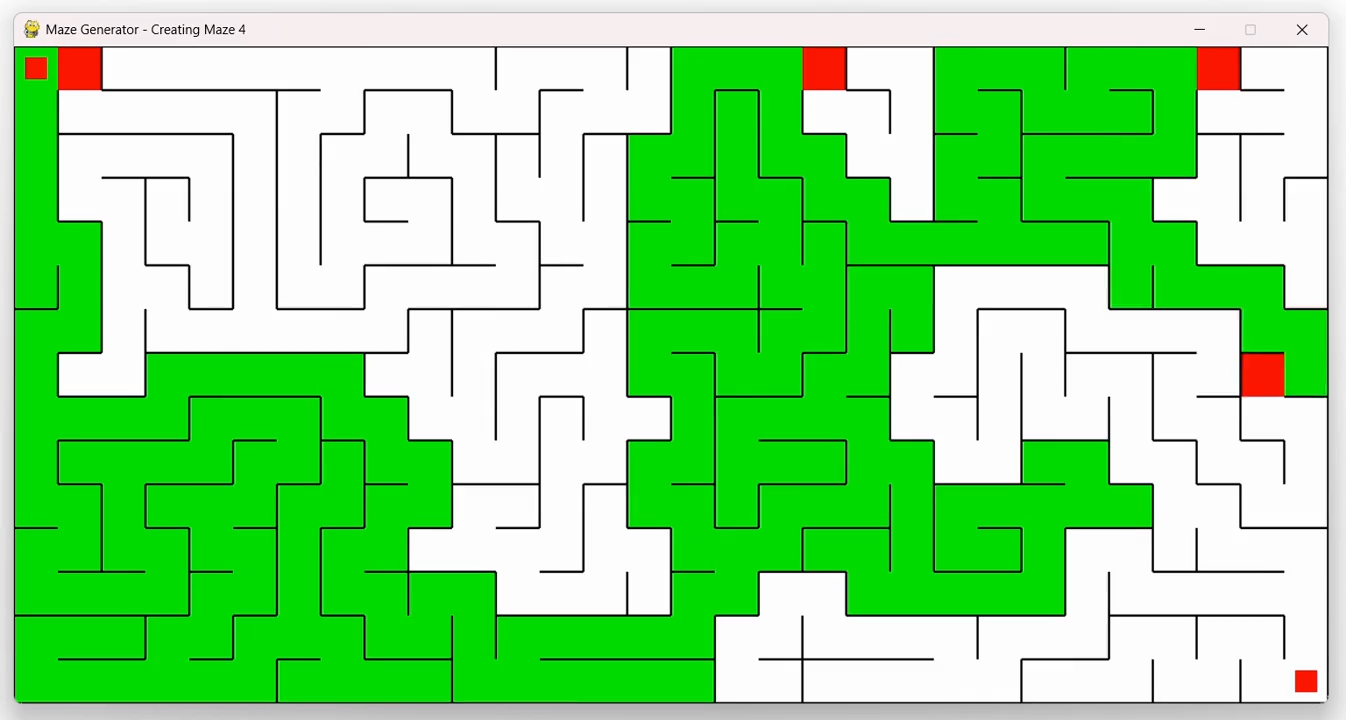

Once generation finishes, the maze immediately gets solved using an open/closed set search, each cell tracks a cost based on distance from the start and estimated distance to the end, and the algorithm always expands whichever open cell looks most promising.

def calculate(self):
    self.fromstart = math.sqrt(self.x**2 + self.y**2)
    self.fromend = math.sqrt((self.x-end[0])**2 + (self.y-end[1])**2)
    self.total = self.fromstart + self.fromend

fromstart is the cost already spent getting here, fromend is a straight-line estimate of what's left, added together they're A*'s classic f = g + h. At every step, the algorithm expands whichever open cell has the lowest combined score, balancing "closest to where I've been" against "closest to where I'm going", rather than blindly exploring in one direction.

Drawing the solution

Once the end cell is reached, the path gets reconstructed backward by following each cell's parent pointer all the way back to the start, then drawn as a thick red line.

Saving maze images

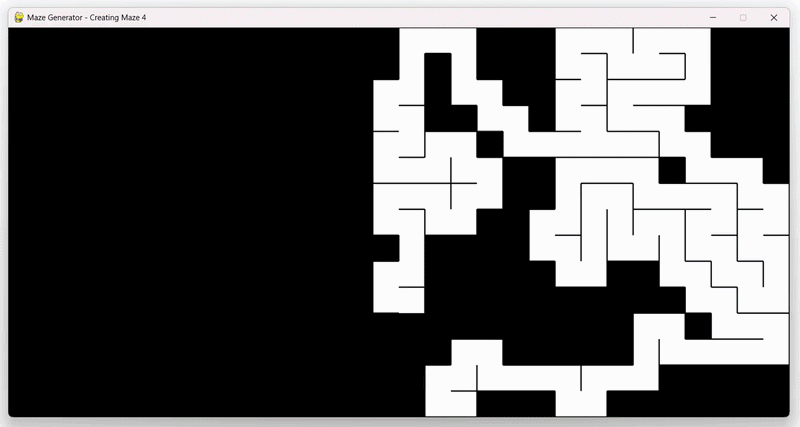

The fun part of this project isn't the maze algorithm, it's what happens after it. The moment a maze finishes generating, and again the moment it's solved, the program saves the game surface straight to a local mazes folder.

pygame.image.save(win, os.getcwd() + "\\mazes\\maze " + str(count) + ".png")

After capturing the solved version, it generates a brand new one, repeating the whole procedure multiple times.
